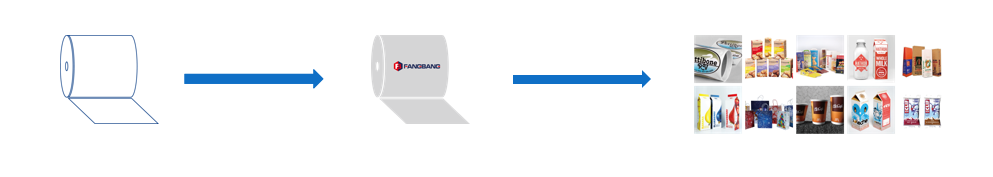

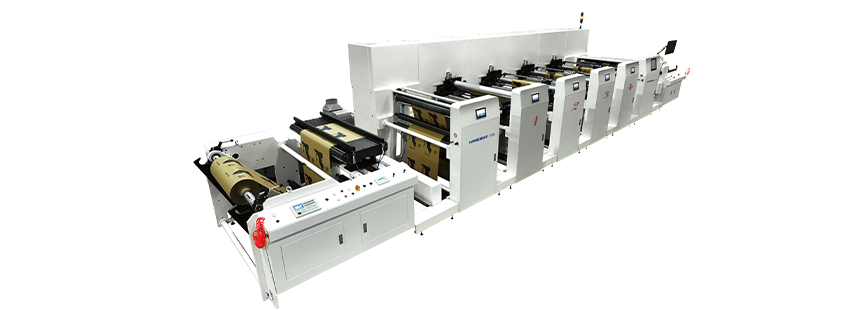

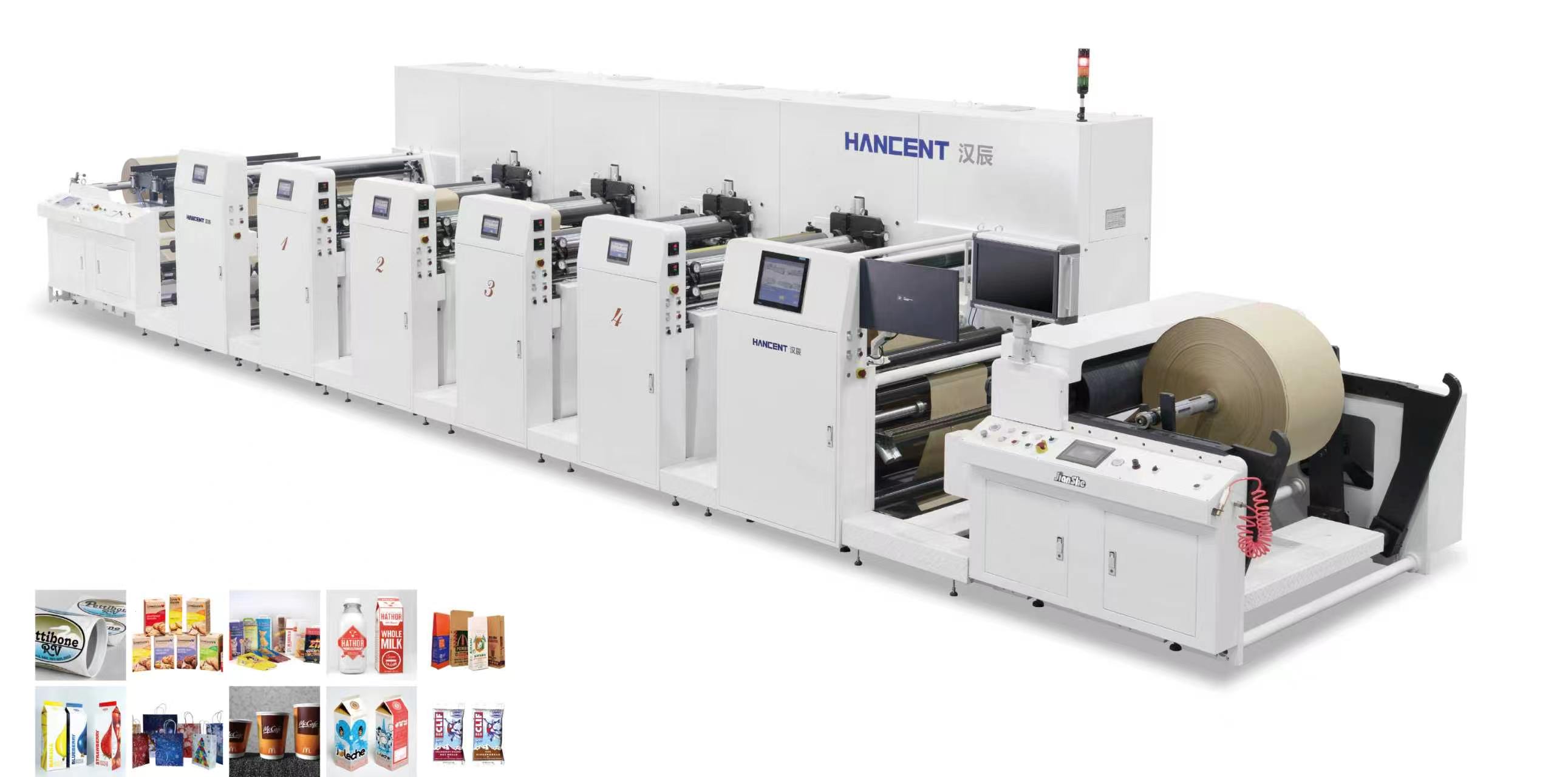

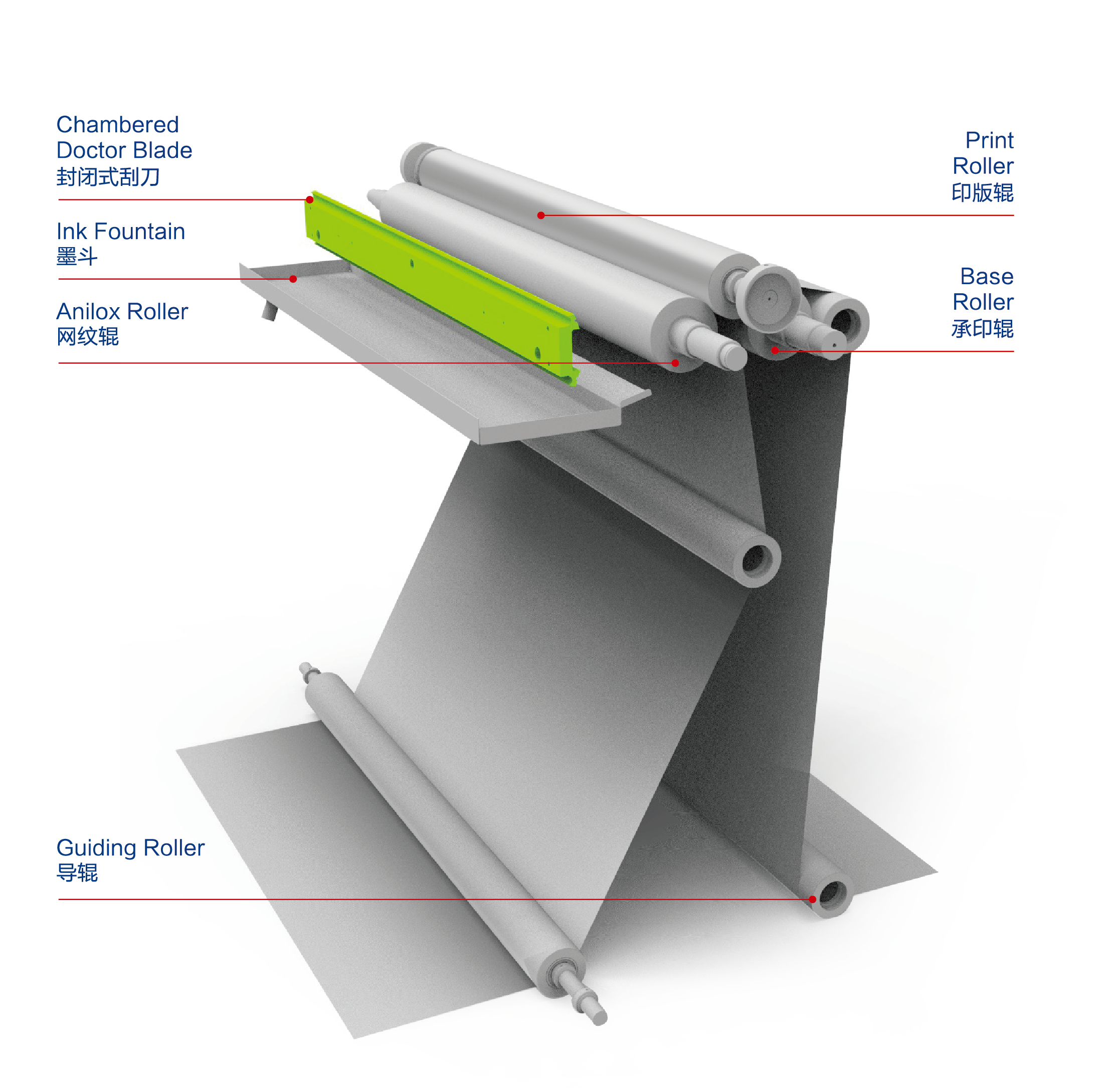

This machine is a printing machine which adopts flexible photosensitive resin plates, rubber plates as the base material, anilox rollers for transferring ink, liquid ink for printing. lt is controlled centrally by PLC system and generally consists of unwinding section,tension control section, infeed traction section.printing section, drying section, outfeed traction section, rewinding section and control section. This machine is an ideal machine for printing paper cup, carton, paper bag and so on.、
| TECHNICAL DATA | YT-1000CB | YT-1300CB | YT-1500CB |
| Paper Thickness | 60~280g/㎡ | 60~280g/㎡ | 60~280g/㎡ |
| Max.Material Roll Width | 1020mm | 1320mm | 1520mm |
| Max. Printing Width | 1000mm | 1300mm | 1500mm |
| Printing Repeat Length | 350-1200mm | 350-1200mm | 350-1200mm |
| Max.Unwinding Diameter | Ф1500mm | Ф1500mm | Ф1500mm |
| Max.Rewinding Diameter | Ф1500mm | Ф1500mm | Ф1500mm |
| Material Core Diameter | Ф76mm(3”) | Ф76mm(3”) | Ф76mm(3”) |
| Registration Accuracy | ±0.1mm | ±0.1mm | ±0.1mm |
| Max. speed | 220m/min | 220m/min | 220m/min |
| Guiding Roller Diameter | Ф120mm | Ф120mm | Ф120mm |
| Drying Mode | Warm Drying and l.R. Drying | ||
