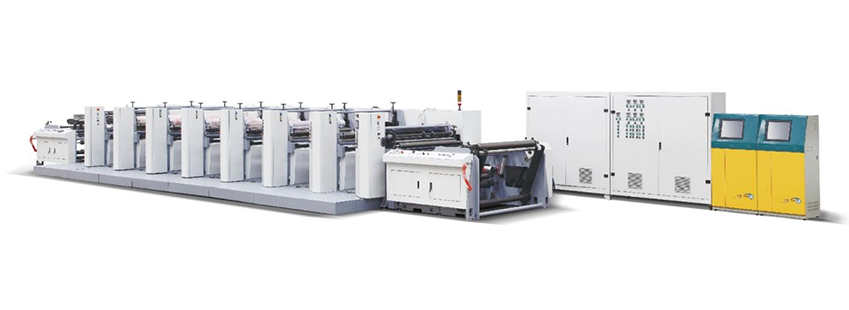

This machine is a printing machine which adopts flexible photosensitive resin plates,rubber plates as the base material, anilox rollers for transferring ink, liquid ink for printing.lt is controlled centrally by PLC system and generally consists of unwinding section,tension control section, infeed traction section, printing section,drying section, outfeed traction section, rewinding section and control section.This machine is an ideal machine for printing paper cup, carton, paper bag and so on.
1.Anilox roller inking structure effectively guarantees printing quality.
2.The machine has strong adaptability.since it can achieve satisfactory printing effect on various materials, from kraft paper to corrugated board.
3.The combination of printing units is flexible, because users can increase ordecrease printing unit number according to different requirements.
4.Low-cost printing plate and Low-loss printing process can effectively reduce printing costwhich is 30-50% lower than gravure printing.
| TECHNICAL DATA | YT-1000C/D | YT-1300C/D | YT-1500C/D |
| Paper Thickness | 40~220 or 220~380g/㎡ | 40~220 or 220~380g/㎡ | 40~220or 220~380g/㎡ |
| Max. Material Roll Width | 1020mm | 1320mm | 1520mm1500mm |
| Max. Printing Width | 1000mm | 1285~1200mm(380~1500mm) | 1500mm |
| Printing Repeat Length | 285~1200mm(380~1500mm) | 285~1200mm(380~1500mm) | 380~1500mm |
| Max.Unwinding Diameter | Ф1500mm | Ф1500mm | Ф1500mm |
| Max. Rewinding Diameter | Ф1500mm | Ф1500mm | Ф1500mm |
| Gearing Specification | 1/8 CP | 1/8 CP | 1/8 CP |
| Registration Accuracy | ±0.12mm | ±0.12mm | ±0.12mm |
| Max. Printing Speed | 150m/min | 150m/min | 150m/min |
| Guiding Roller Diameter | Ф100mm | Ф100mm | Ф100mm |
| Main Motor Power | 11kw | 11kw | 11kw |
| Drying Mode | Warm Drying and l.R. Drying | ||
