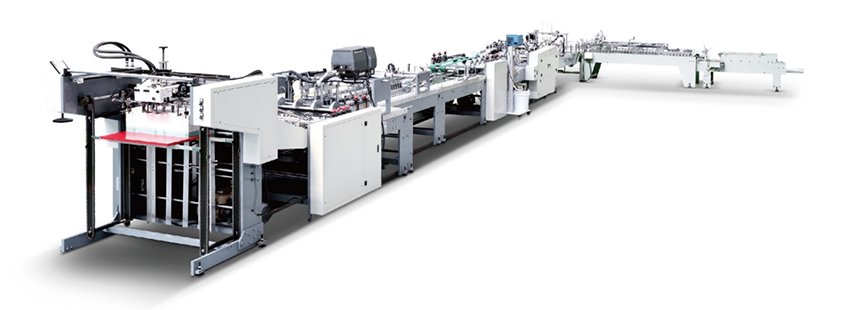

ZD-BFP Auto Sheet-Fed Paper Bag Machine

Machine Description

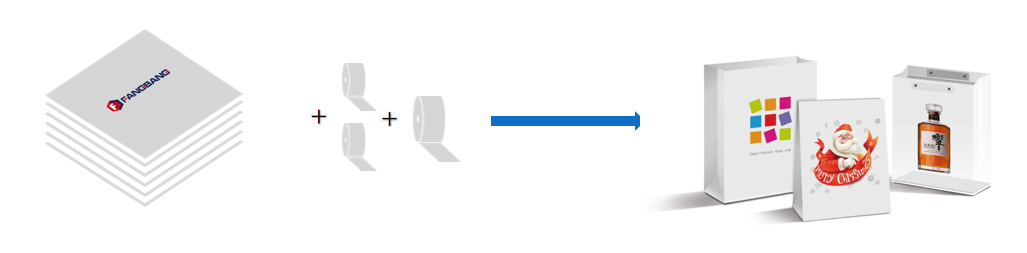

This machine takes single sheet of paper as raw material, completes the square bottom paper bag with upper folding mouth and bottom card at one time, and is the ideal equipment for processing middle and high grade non-marking type handbag. By completing the steps of raw paper conveying, forming simple press line, bag folding, side glue application, simple paper forming, bag turning, bag bottom forming, bottom card insertion and bag bottom sealing on one machine, the machine can ensure the quality of the handbag forming while effectively reducing the labour cost. Equipped with advanced pre-stacking flyer, the machine is able to achieve non-stop feeding, thus enhancing the machine capacity. Special mechanical and electrical design allows the machine to handle a wide range of paper.

It can fully meet the shopping bag production needs of different industries such as food, garment and luxury goods.

Machine Highlights

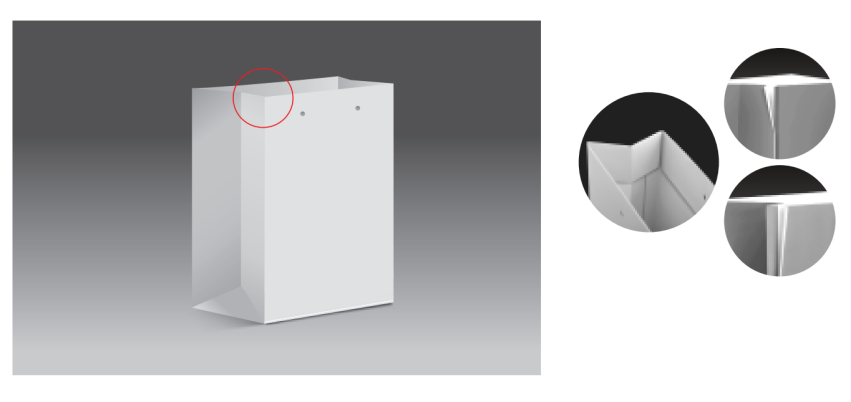

1 machine can produce 3 types of bag opening.

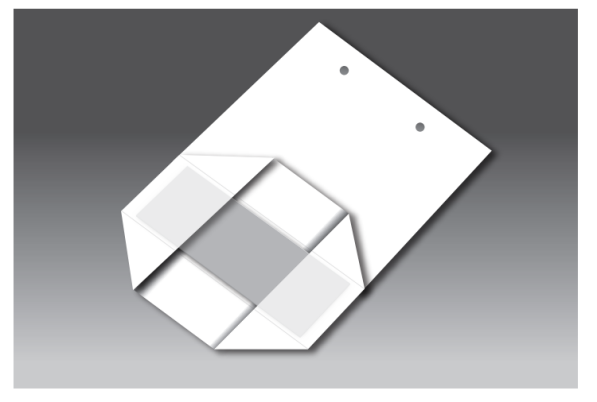

Automatic bottom card release function



Technical Parameters
TECHNICAL DATA ZD-BFP08 ZD-BFP18 ZD-BFP20
Paper Width 390~780mm 550~1250mm 710~1320mm
Paper Length 310-530mm 310-630mm 340-630mm
Paper Thickness A:牛皮纸 120~200g/m A:(Kraft Paper) 120~200g/m
  B:铜版纸+PP覆膜 155~250g/m B:(Art Paper )+(Laminated PP Film) 155~250g/m
  C:白卡+PP覆膜180~250g/m C:(White Cardboard)+(Laminated PP Film)180~250g/m
  D:灰板纸+PP覆膜 150~300g/m D:(Grey paperboard)+(Laminated PP Film) 150~300g/m
Bag Body Width 120~250mm 180~450mm 240-500mm
Bag Body Height 215~395mm 240~480mm 250~480mm
Bag Bottom Size 60~130mm 80~170mm 100~170mm
Bag Mouth Fold Width 25~50mm 25~50mm 25~50mm
Max. Speed 40~60bags/min 40~60bags/min 40~60bags/min
Total Power 12kw 15kw 15kw
Total Weight 10000kg 15000kg 15000kg
Overall Dimension L17300xW2200xH1700mm L17300xW2500xH1700mm L17300xW2600xH1700mm
Overall Dimension of Bottom Card Device   L2800xW1500xH1600mm L2800xW1500xH1600mm
