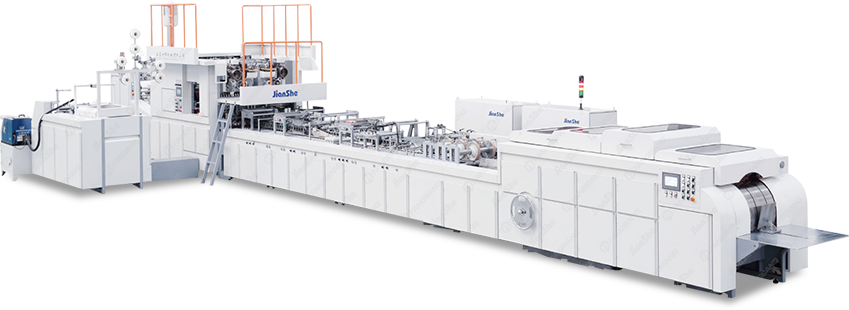

ZD-QFP Automatic Sheet-Fed Paper Bag Machine

Machine Description

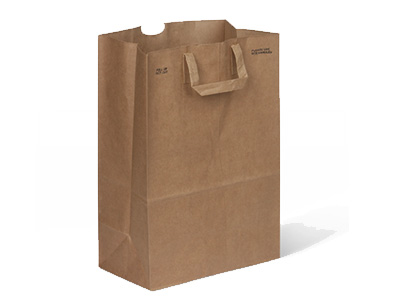

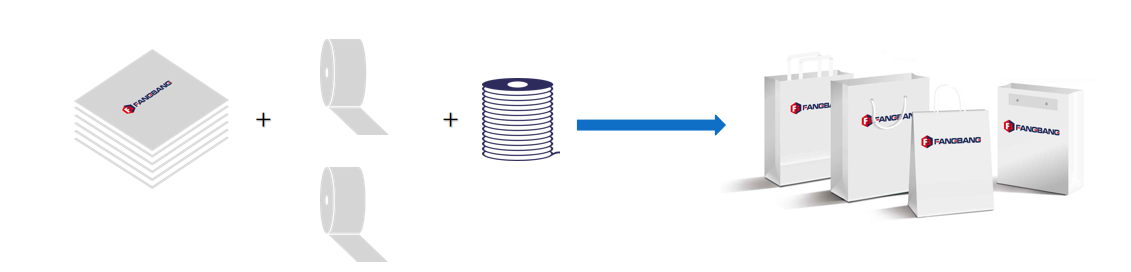

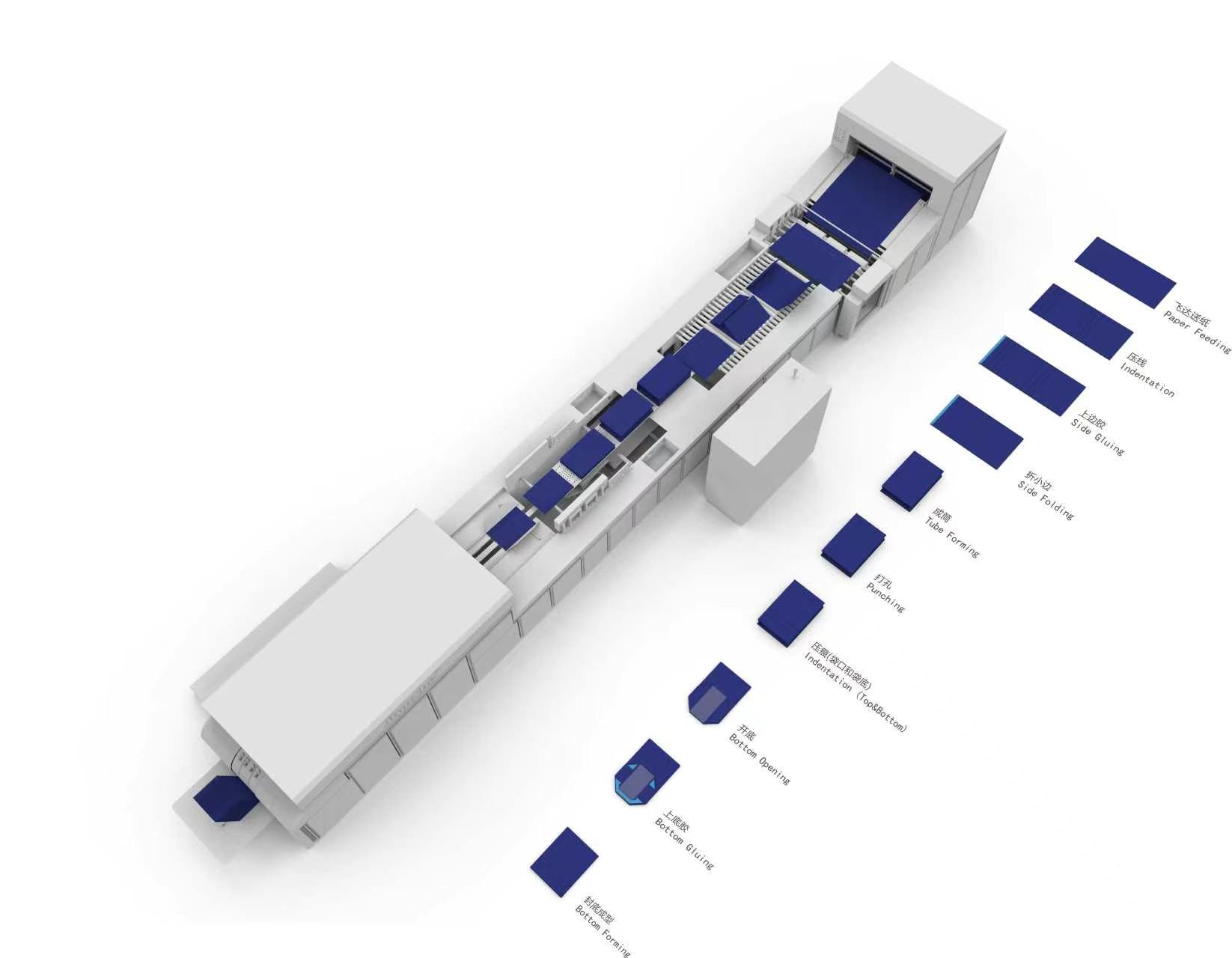

This machine is designed to manufacture small-sized square bottom paper bags withhandles from sheet paper, paper patch roll and paper rope, and it is an ideal equipment forproducing mid-to-high-end paper handbags, especially suitable for food,clothing and luxuries industries, By implementing steps including handle making.handle application, bag mouth folding, tube forming and bottom forming withina fully automatic process, this machine can effectively save labor costs.Equipped with advanced pre-heap paper feeder,this machine can realize non-stop feeding, thereby improving the production capacity.Thanks to perfect technologies, the machine can produce paper handbagswith high quality in many different forms, thoroughly liberate the hands for makingsmall-sized paper handbags, and bring more profit for the customer.

Machine Highlights

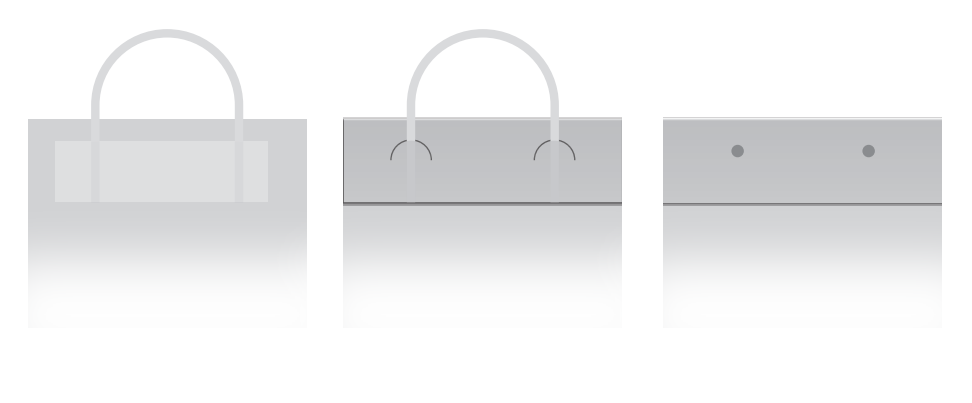

1 machine can produce 3 types of bag openings.



Technical Parameters
TECHNICAL DATA ZD-QFP08 ZD-QFP14 ZD-QFP18 ZD-QFP18S ZD-QFP20
Paper Width 470~780mm 550~1050mm 630~1250mm 710~1250mm 710-1320mm
Paper Length 310~530mm 340~630mm 340~630mm 400~630mm 360-630mm
Paper Thickness 100~160g/㎡ 100~220g/㎡(250g/㎡) 100~220g/㎡(250g/㎡) 100~220g/㎡(250g/㎡) 100~220g/㎡(250g/㎡)
Bag Body Width 135~250mm 180~350mm 220~450mm 240~450mm 240~500mm
Bag Body Height 215~395mm 200~480mm 200~480mm 280~480mm 200~480mm
Bag Bottom Size 60~130mm 80~180mm 80~180mm/80~220mm 100~250mm 100~180mm
Bag Mouth Fold Width 35~55mm 40~60mm 40~60mm 40-60mm 40~60mm
Handle Rope Height 155~175mm 170~185mm 170~185mm 170~185mm 170~185mm
Handle Rope Diameter Ф4~6mm Ф4~6mm Ф4~6mm ф4~6mm ф4-6mm

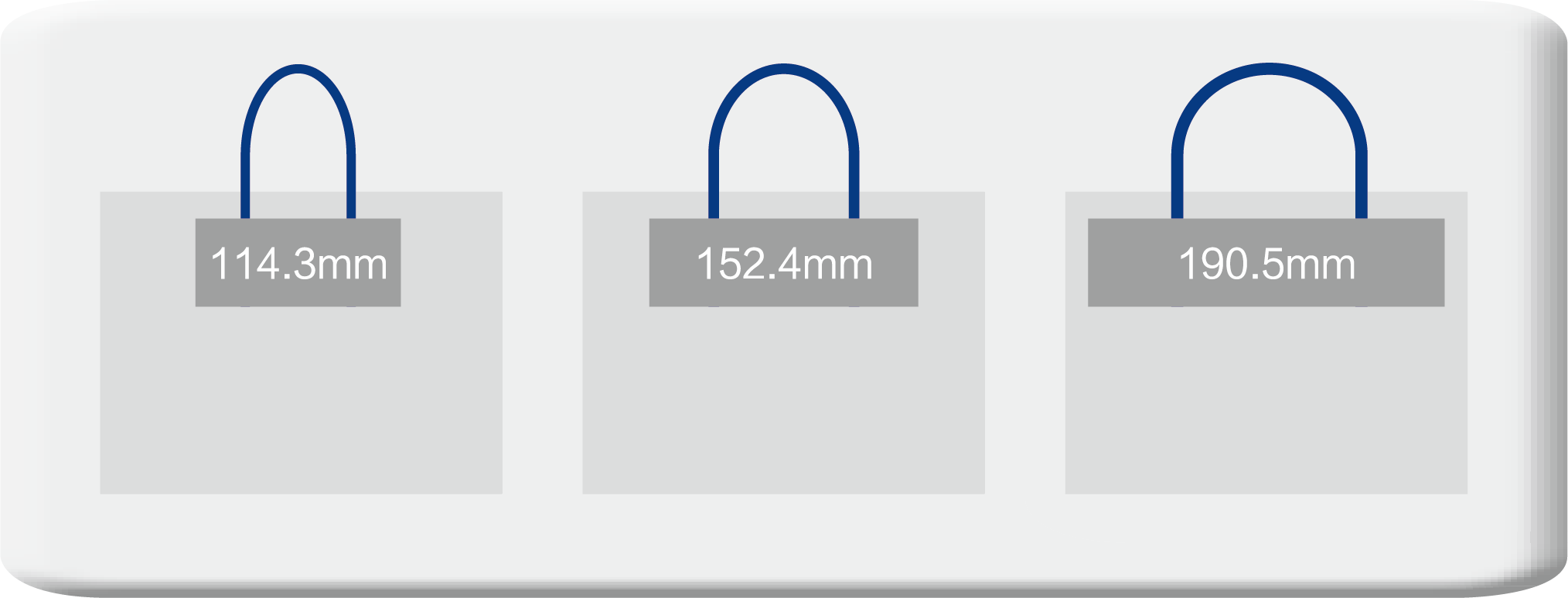

Handle Patch Length 114.3mm 152.4mm 188.5mm 188.5mm 188.5mm
Handle Patch Width 40~50mm 40~50mm 40~50mm 40~50mm 40~50mm
Paper Patch Roll Diame Ф1200mm Ф1200mm Ф1200mm Ф1200mm Ф1200mm
Paper Patch Roll Width 80~100mm 80~100mm 80~100mm 80~100mm 80~100mm
Paper Patch Thickness 100~250g/m 100~250g/m 100~250g/m 100-250g/m 100~250g/m
Max. Speed 100bags/min 100bags/min 100bags/min 80bags/min 100bags/min
Total Power 22kw 20kw 22kw 22kw 22kw
Total Weight Approx.20000kg Approx.22000kg Approx.24000kg Approx.27000kg Approx.25000kg
Overall Dimension L13500xW4300xH2400mm L16000xW4300xH2600mm L16000xW4500xH2600mm L17500xW4500xH2600mm L16000xW4600xH2600mm
Optional Benefits

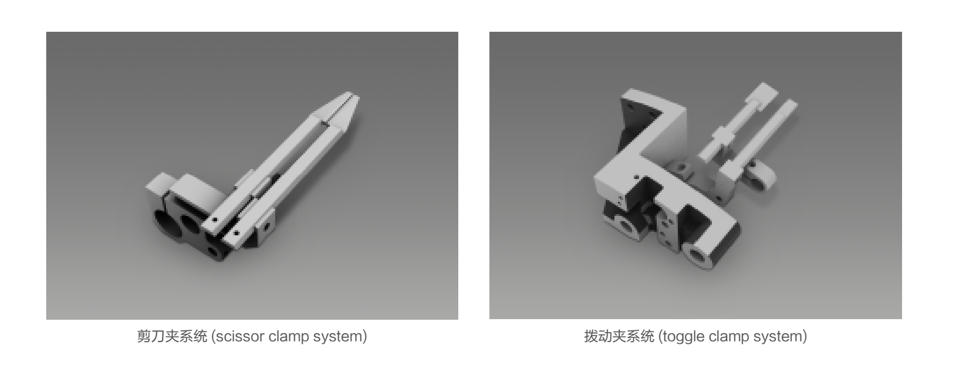

Optional scissor clamp system and toggle clamp system.

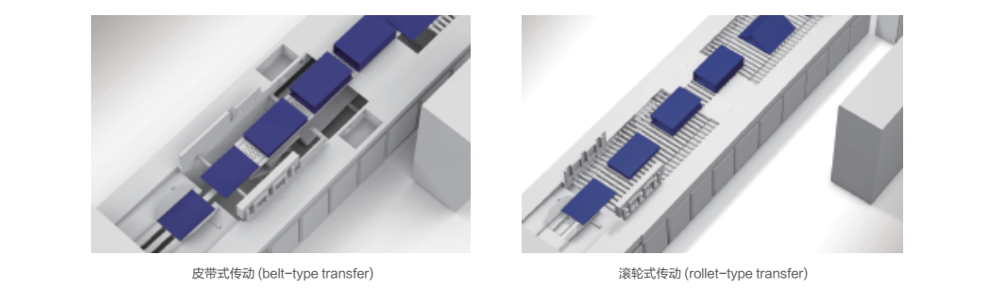

Tube transfer system with optional belt drive or roller drive.

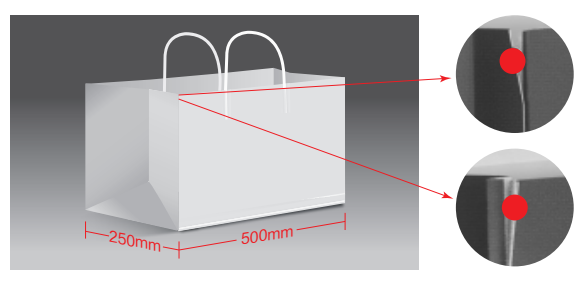

Optional large and small side fusing; bag widths up to 500 mm or bottom widths up to 250 mm.

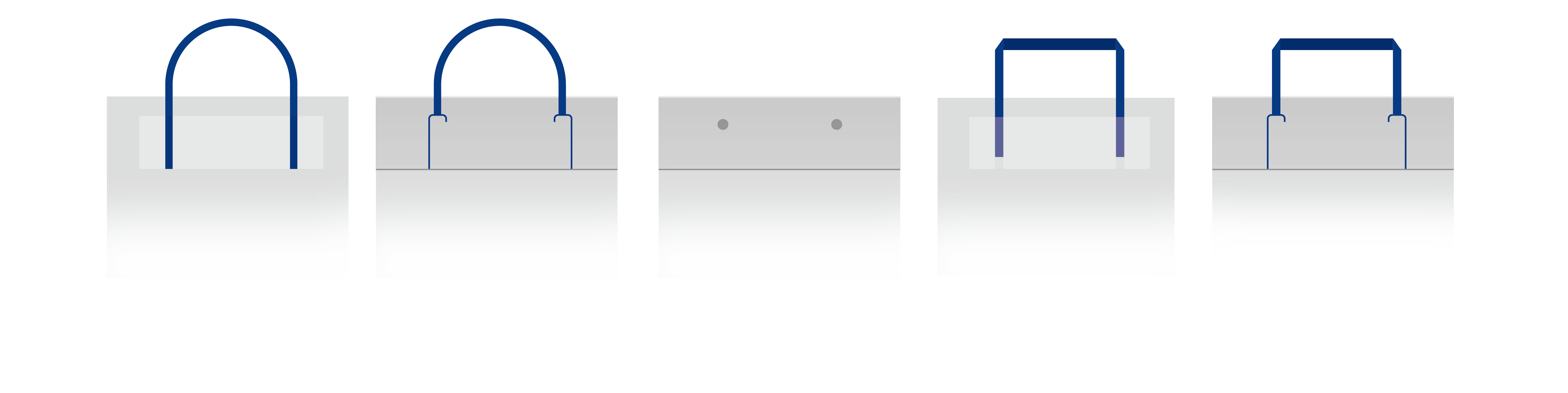

Optional round or flat rope handle unit Optional servo motor instead of traditional mechanical drive shafts
