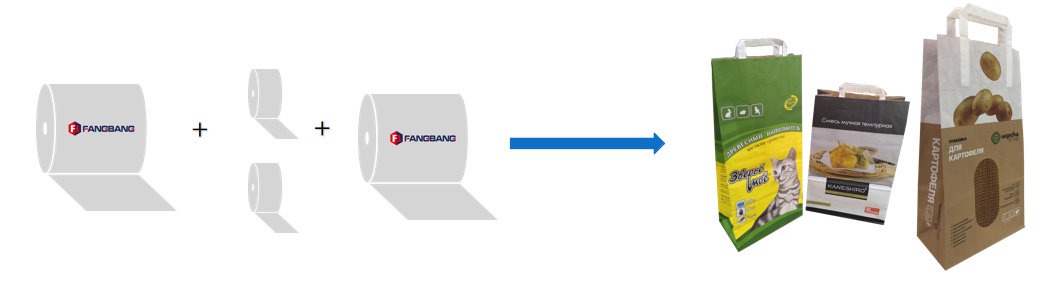

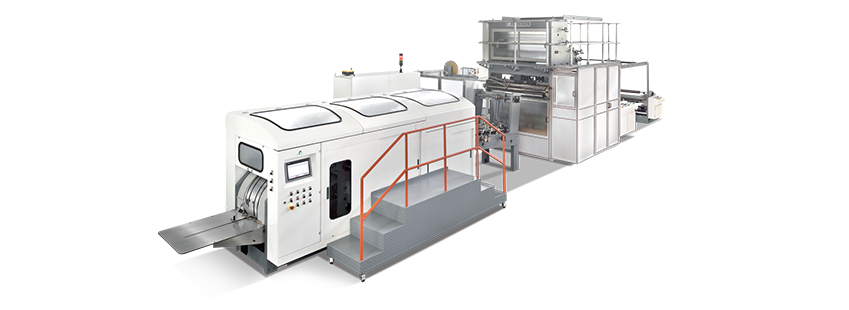

This machine is different from the traditional flat rope square bottom paper bag machine, which is ideal for making high-end square bottom paper bags with flat rope handles. This machine is made by a special and unique mechanism to make rope, glued on a layer of paper or between two layers of paper, thus forming a special flat rope square bottom paper bag machine. By completing the steps of handle making, handle gluing, paper brief forming, paper brief cutting and bag bottom forming on one machine, the machinechang truly realizes fully automatic production and can effectively save labor costs.

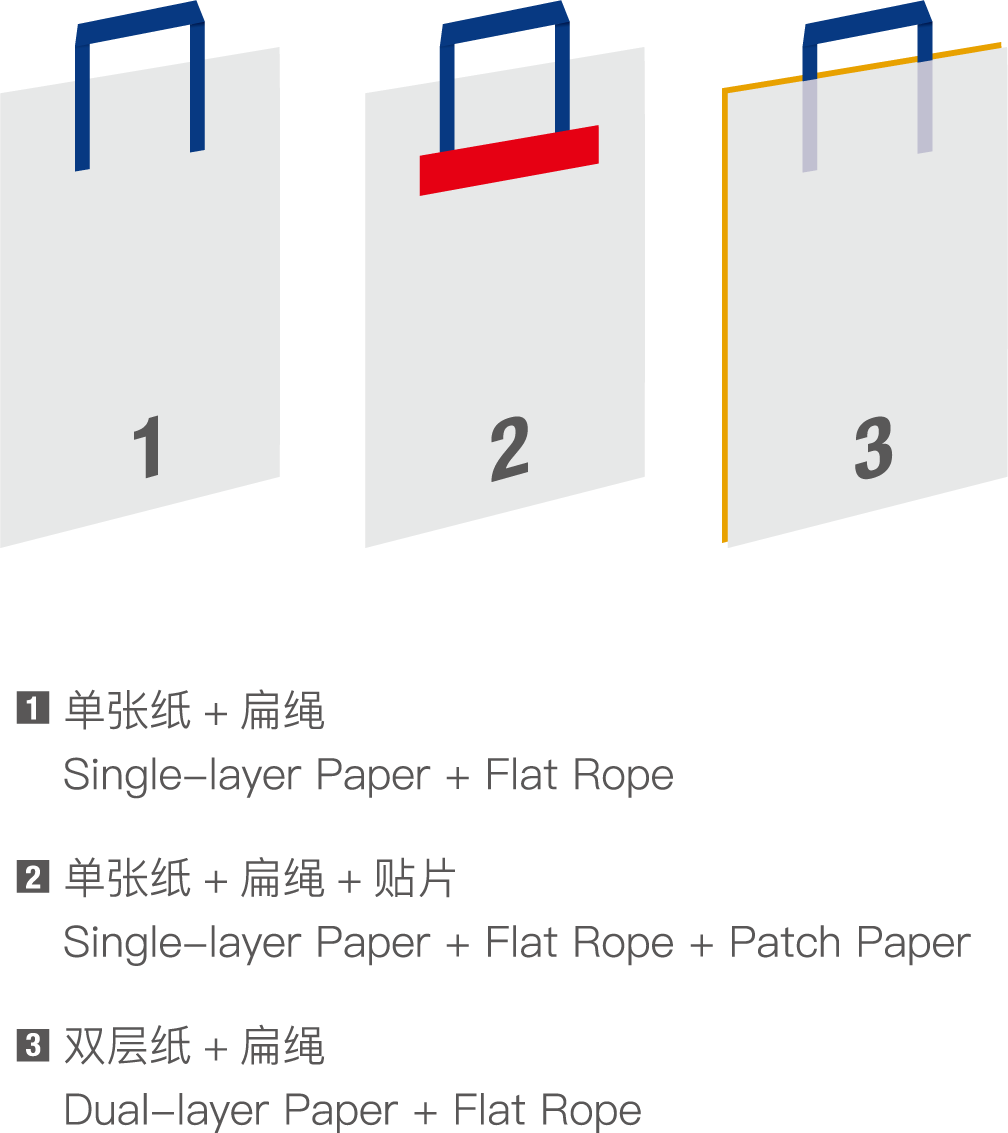

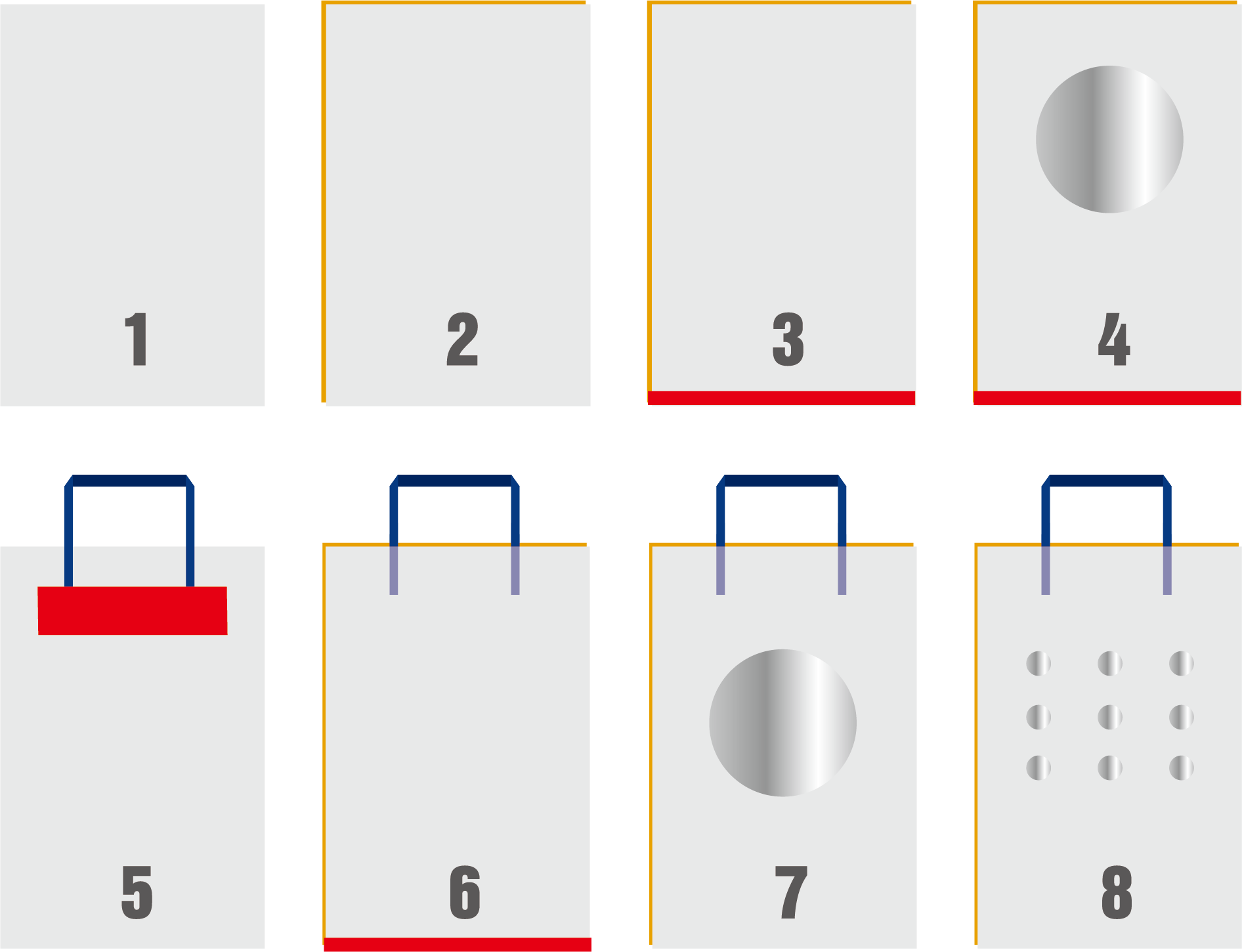

| The special mechanical and electrical design can produce many kinds of flat rope paper bags in one machine, which can allow customers to switch freely between cost saving, mainstream market demand and increasing the load capacity of paper bags. |  |
| Paper Roll Width | 630~1150mm(590~1150mm) |
| Max.Paper Roll Diameter | Ф1200mm |
| Material Core Diameter | Ф76mm(3”) |
| Paper Thickness | 70~125g/㎡ |
| Bag Body Width | 220-360mm(200~360mm) |
| Paper Tube Length | 350~600mm(350~650mm) |
| Bag Bottom Size | 80-200mm |
| Handle Center Distance | 330mm≤a≤560mm |
| Flat Handle Rope Height | 80mm |
| Flat Handle Rope Width | 18mm |
| Paper Rope Roll Width | 80-85mm |
| Paper Rope Roll Diameter | 中1000mm |
| Paper Rope Thickness | 80~100g/㎡ |
| Handle Patch Length | 180mm |
| Handle Patch Width | 70mm |
| Paper Patch Roll Diameter | Ф1000mm |
| Paper Patch Roll Width | 180mm |
| Paper Patch Thickness | 80~100g/㎡ |
| Max. Speed | 140bags/min |
| Total Power | 56kw |
| Total Weight | Approx. 22000kg |
| Overall Dimension | L15000xW5500xH3600mm |
