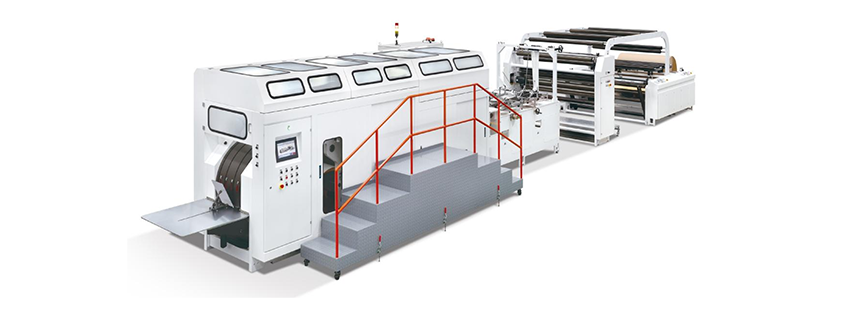

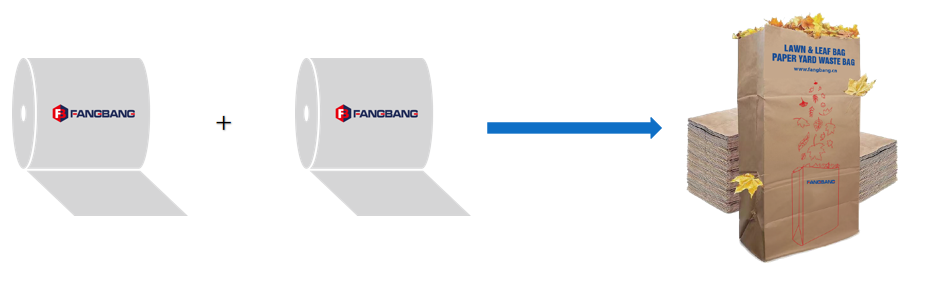

This machine takes rolled paper as raw material and finishes single or double layers of square bottom paper bags without handles at one time, which is the ideal equipment for producing medium, large and super-large square bottom paper bags.
| TECHNICAL DATA | ZD-FJ22+D |
| Paper Roll Width | 770~1700mm |
| Max. Paper Roll Diameter | Ф1200mm |
| Material Core Diameter | Ф76mm (3”) |
| Paper Thickness | 70~125g/㎡ |
| Tube Length | 600~1180mm |
| Bag Body Width | 220-540mm |
| Bag Bottom Size | 150~350mm |
| Max. Speed | 150bags/min |
| Total Power | 25.5kw |
| Total Weight | Approx.15000kg |
| Dimension(L*V*H mm) | L16000xW3500xH2300mm |
