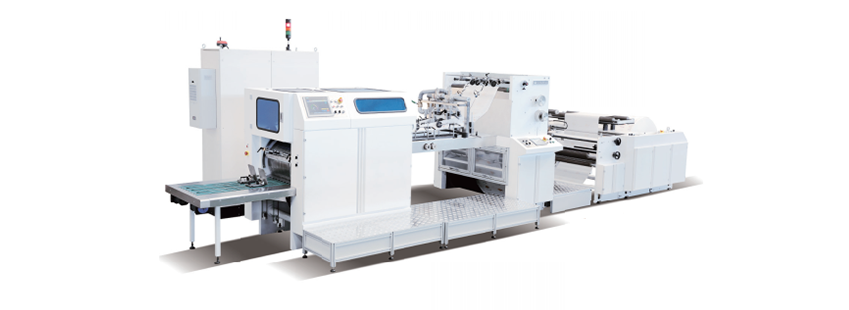

As the first genuine Full-Servo High-Speed Flat Bottom Paper Bag Machine in China, this machine can make use of 9 high-speed and high-precision servo motors, to complete processes including paper unwinding, hot-melt glue spraying, film pasting.perforation, side gluing, tube forming, tube breaking, bottom gluing, bottom forming and bags collection at high speed. It produces flat & satchel paper bags not only for food industry, but also for medicine industry and other fast-consuming industries, Thanks to the special dual-line production design, this machine is an ideal alternative to imported euipment, for customers to find the perfect balance between production efficiency and bag size according to their various requirements.
|

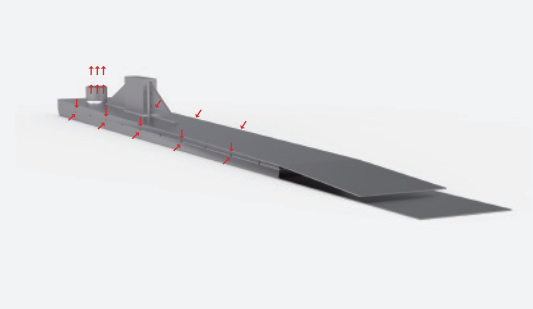

The first vacuum template in China. |
 |
|

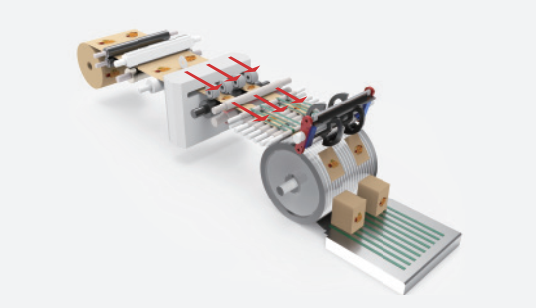

Nine Siemens servos collaborate to complete two-channel production |
 |
| TECHNICAL DATA | ZD-J20S （Single Line) |
ZD-J20D (Dual Lines) |
| Max. Paper Roll Width | 1100mm | 1100mm |
| Max. Paper Roll Diameter | Ф1300mm | Ф1300mm |
| Material Core Diameter | Ф76mm (3'') | Ф76mm (3”) |
| Material Thickness | Paper: 30-90g/㎡ | Paper: 30-90g/㎡ |
| Cellophane: 40~90g/㎡ | Cellophane: 40~90g/㎡ | |
| Tube Length | 105~400mm | 105~400mm |
| Bag Body Width | W/0 Gusset: 60-500mm | W/0 Gusset: 60~230mm |
| With Gusset: 60~500mm | With Gusset: 60~190mm | |
| Max. Gusset Depth | 65mm | 65mm |
| Bottom Folding Length | 15~25mm | 15~25mm |
| Max. Speed | 1000bags/min | 1800bags/min |
| Total Power | 75kw | 75kw |
| Total Weight | Approx. 5000kg | Approx.5000kg |
| Overall Dimension | L9000mmxW2500mmxH2100mm | L9000mmxW2500mmxH2100mm |
