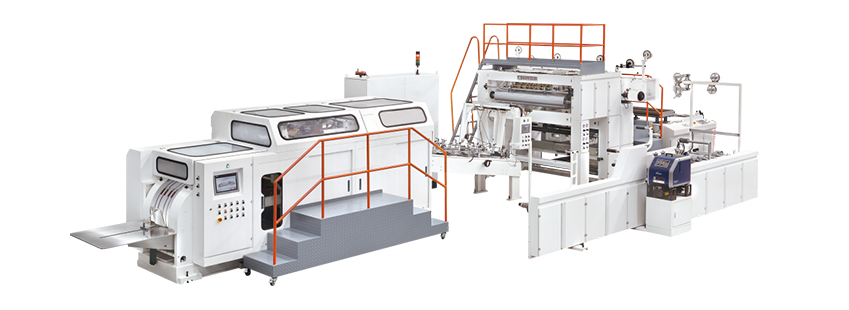

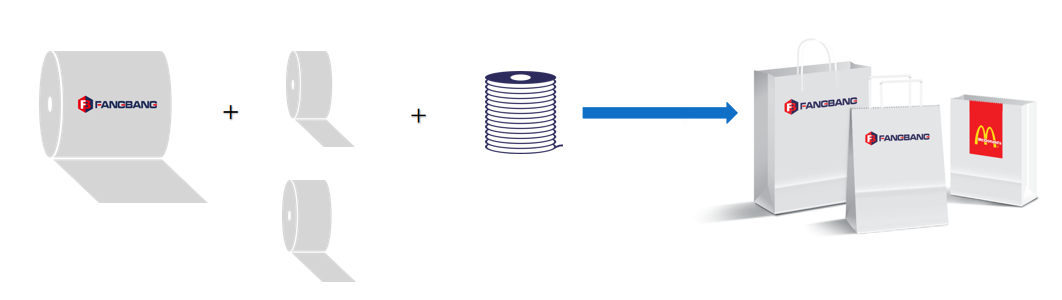

This machine is designed to manufacture square bottom paper bags with handles from paper roll, and it is an ideal equipment for producing mid-size and big-size paper bags fast., By implementing steps including paper feeding, tube forming, tube cutting and bottom forming inline, this machine can effectively save labor costs.
|

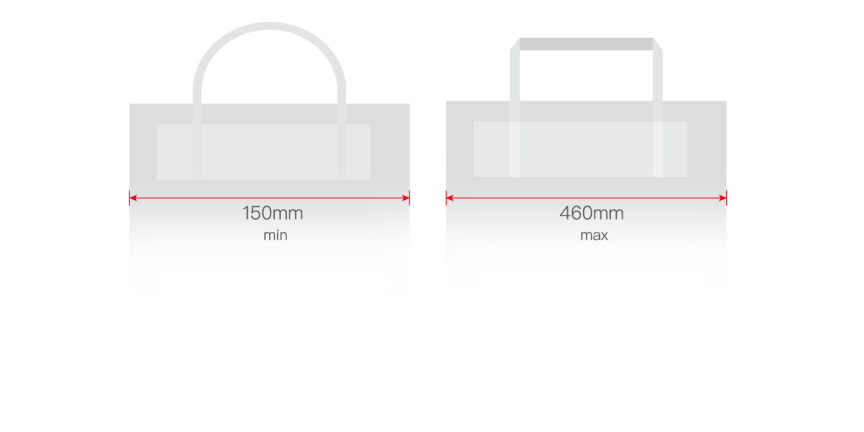

The range of paper bag front width for this model: 150-460mm. |
 |
|

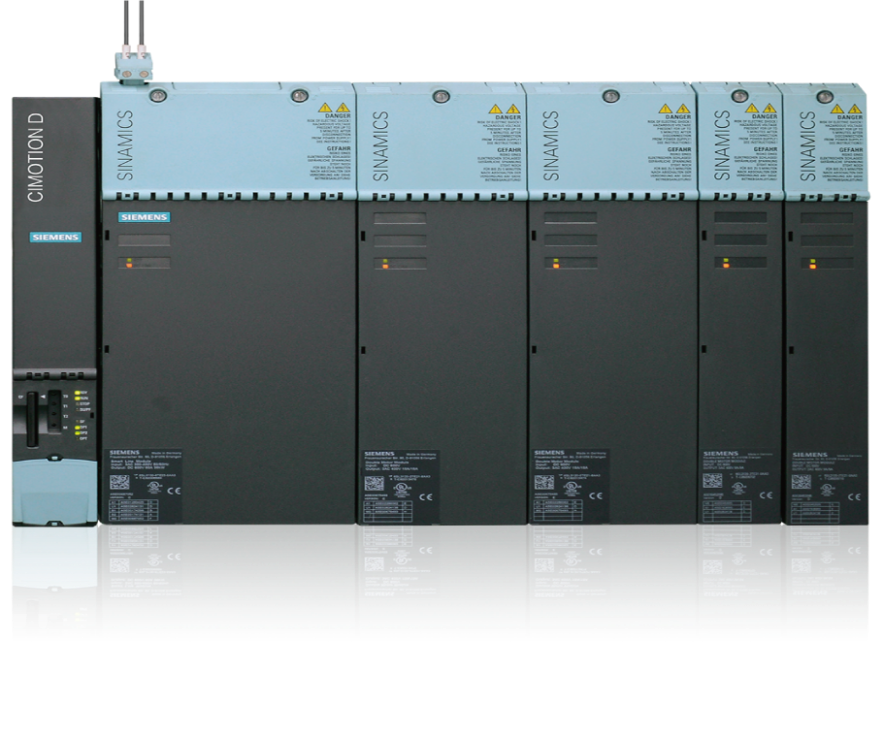

This model adopts full servo motor adjustment for size adjustment, which can shorten the product size adjustment time by 80%. |
 |
|

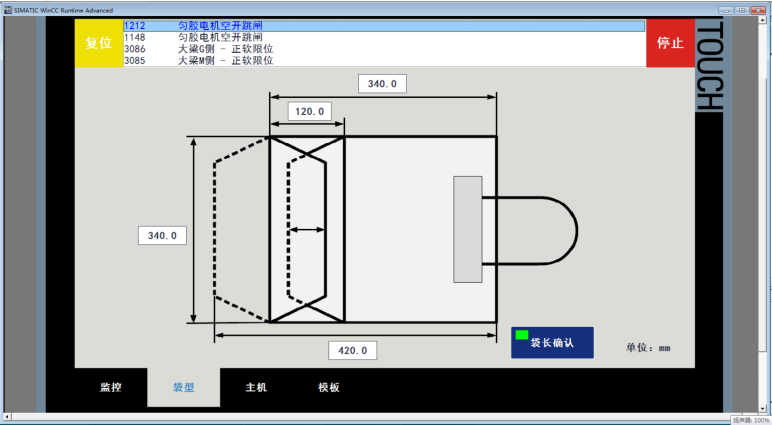

SIEMENS PLC system ensures that the adjustment of cutting length can be implemented directly on touch screen,meanwhile brings efficient and stable production. |
 |
| TECHNICAL DATA | ZD-QFJ18N |
| Paper Roll Width | 550~1390mm(490~1390mm) |
| Max.Paper Roll Diameter | Ф1500mm |
| Material Core Diameter | Ф76mm(3”) |
| Paper Thickness | 80~150g/㎡ |
| Bag Body Width | 180~460mm(150mm~460mm) |
| Paper Tube Length | 300~530mm(280~570mm) |
| Bag Bottom Size | 80~220mm |
| Handle Rope Height | 110mm~115mm |
| Handle Rope Diameter | Ф4~6mm |
| Handle Patch Length | 152.4mm |
| Handle Patch Width | 45~50mm |
| Paper Patch Roll Diameter | Ф1200mm |
| Paper Patch Roll Width | 90~100mm |
| Paper Patch Thickness | 100~180g/㎡ |
| Max. Speed | 150bags/min(180bags/min) |
| Total Power | 46kw |
| Total Weight | Approx.21000kg |
| Overall Dimension | L14500xW6000xH3400mm |
