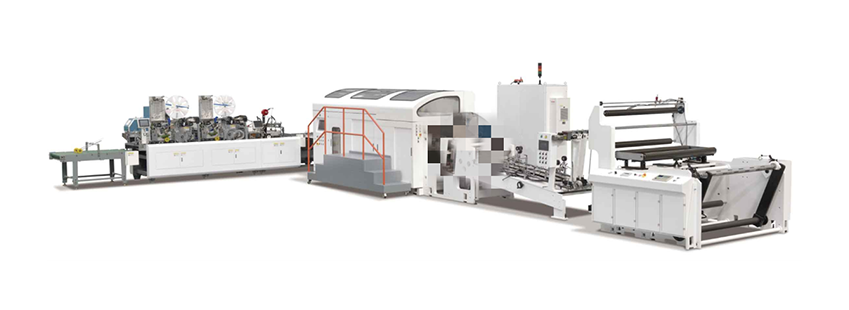

ZD-FJ21+PE+S High-Speed Roll-fed Paper Bag Manufacturing Machine

Machine Description Machine Highlights Technical Parameters

Machine Description

This machine derives from the traditional roll-fed paper bag machine by adding special function, which makes itself be able to make special e-commerce paper bags for shipping light merchandise. This machine is multi-function and easy-operation, and it can efficiently and stably implement processes including flap die-cut, bottom forming and peal&seal strip/tear strip pasting, which can save the labor cost markedly and create more values for customers.

Machine Highlights

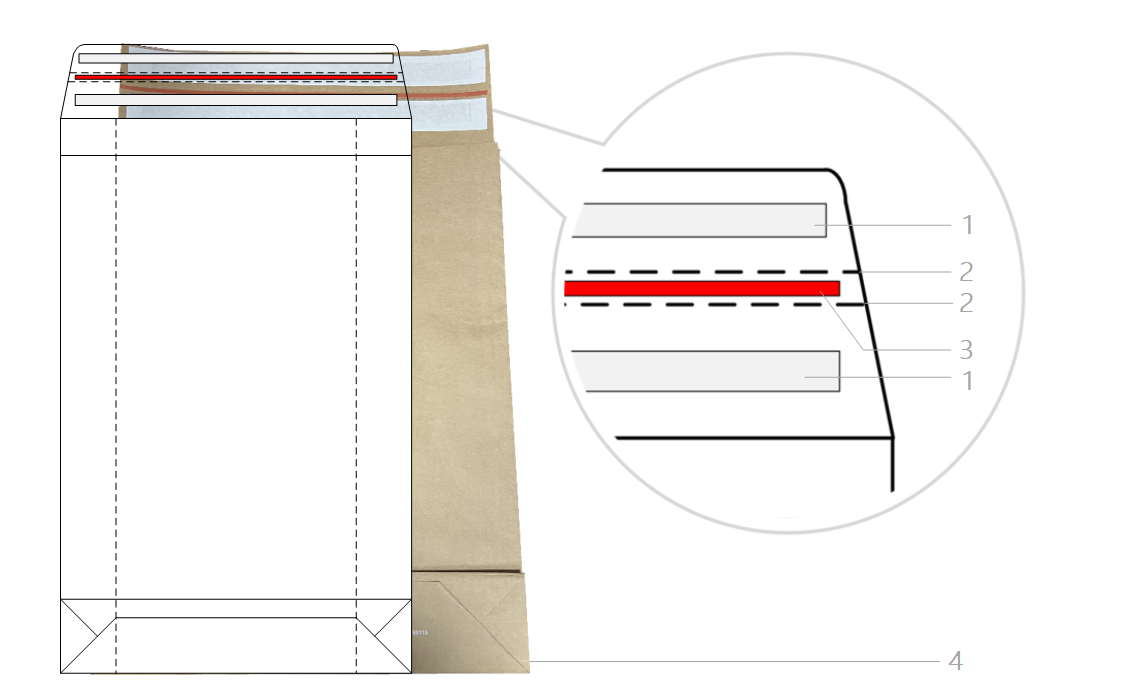

1: Hot melt adhesive & release paper

2: Dotted line

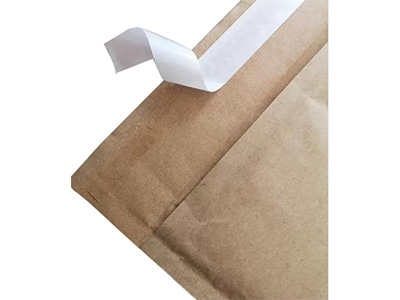

3: Easy Tear Strip

4: Bottom of bag

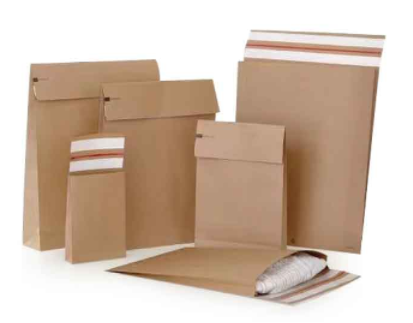

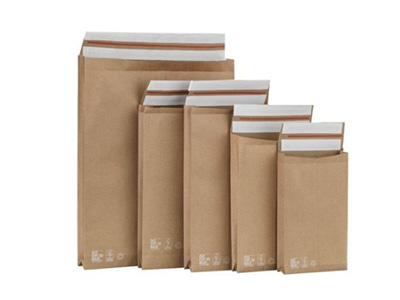

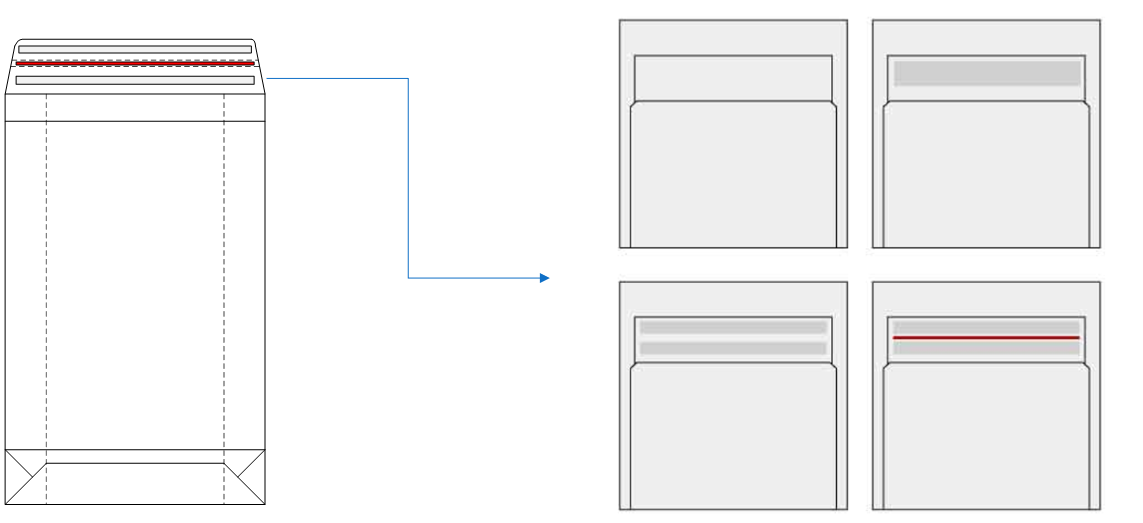

Various Kinds of Bag Flap

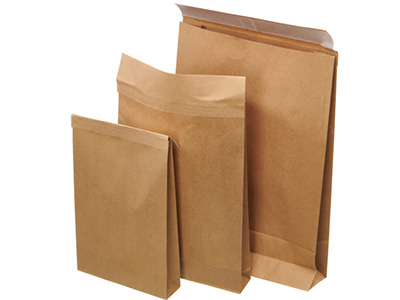

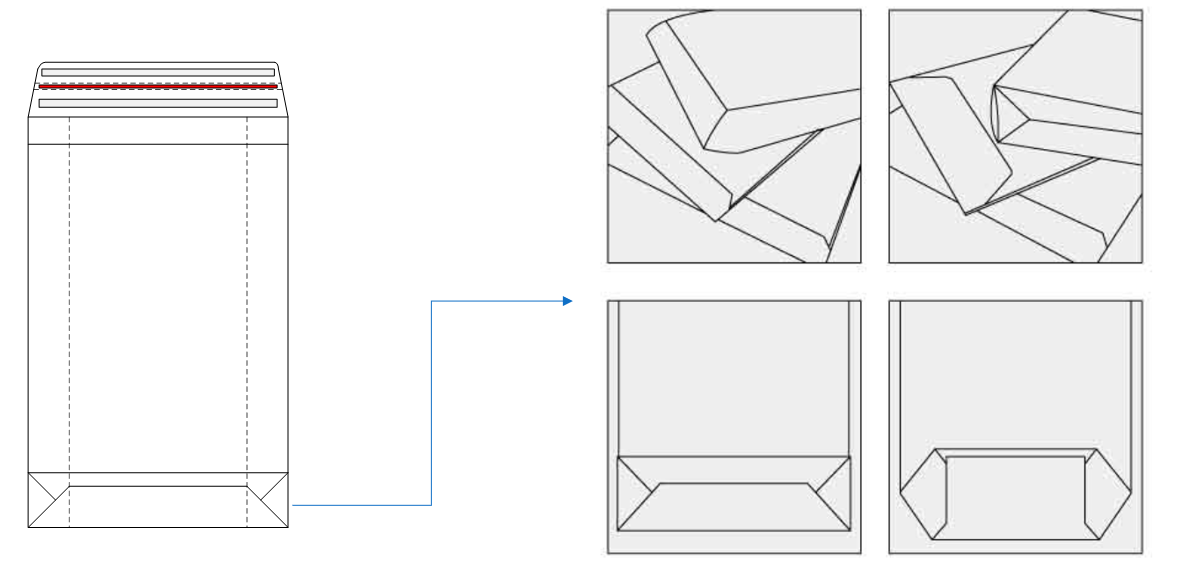

Various Kinds of Bag Bottom

Technical Parameters

TECHNICAL DATA	V-bottom with Flap	Square Bottom with Flap	Cross Bottom with Flap	Square Bottom wo Flap
Paper Roll Width	630~1530mm	630~1530mm	630~1530mm	630~1530mm
Max. Paper Roll Diameter	Ф1500mm	Ф1500mm	Ф1500mm	Ф1500mm
Material Core Diameter	Ф76mm (3’’)	Ф76mm (3’’)	Ф76mm (3’’)	Ф76mm (3’’)
Paper Thickness	80~130g/㎡	80~130g/㎡	80~130g/㎡	80-170g/㎡
Tube Length	380-770mm	380-770mm	380-770mm	380-770mm
Bag Body Width	220-540mm	220-540mm	300~540mm	220-540mm
Bag Bottom Size		80~210mm	80~110mm	80~210mm
Gusset Size	0,40~130mm	80-210mm		80~210mm
Flap Height	50~120mm	50~130mm	50~120mm
Max. Speed	100bags/min	100bags/min	100bags/min	120bags/min
Total Power	52.5kw	52.5kw	52.5kw	52.5kw
Total Weight	Approx.16000kg	Approx.16000kg	Approx.16000kg	Approx.16000kg
Dimension(LWH mm)	14000x7000x2000mm	14000x7000x2000mm	14000x7000x2000mm	14000x7000x2000mm
