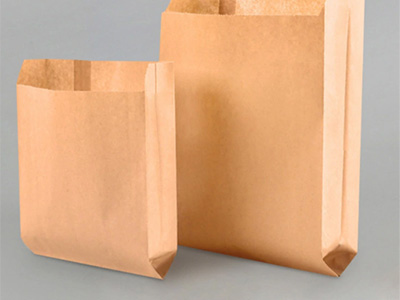

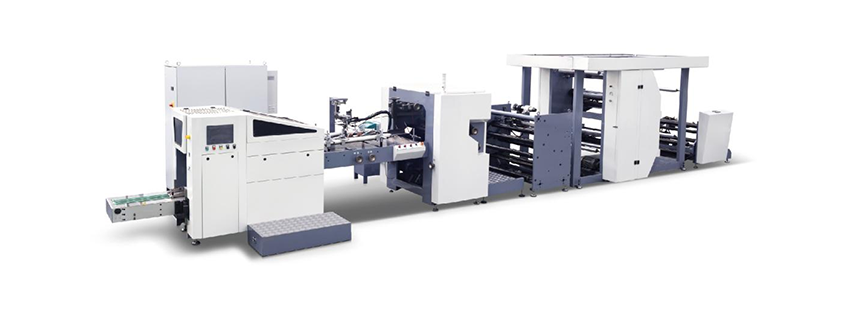

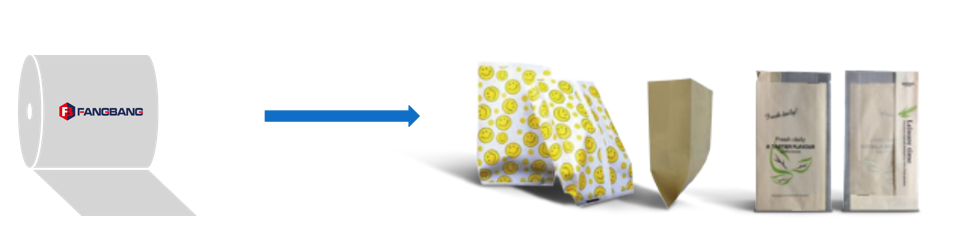

This machine is designed to manufacture sharp bottom paper bag from paper roll, and it is suitable for kraft paper, ribbed kraft paper, grease-proof paper, coated paper, medico paper & etc.By implementing steps including roll feeding, side gluing, perforating, tube forming, tube cutting off.bottom folding and gluing, finished bag collecting within a fully automatic process,can effectively save labor costs. lt has advantage of easy operation, high efficiency,more steady, it is an ideal machine for make different kind of paper bag, snack paper bag,food paper bag, bread paper bag, dry fruit paper bag and eco-friendly paper bag.
1. Machine use French Schneider touch screen human-computer interface,operation and control easily.
2. Adopt UK TRlO PC micro-computer control system,integrated with optical fiber, ensure high speed running steadily.
3. Adopt Japanese Yaskawa Servo Control System andGerman SlCK photocell for rectify,tracking printed bag accurately.
4. Optional window making device including film unwinder and hot-melt glue system,can apply transparent window on one face of paper bag to display more clearly the goods inside.
5. Optional printing unit without unwinding/rewinding, saves operation time and physical space greatly, bringing more automation into traditional paper bag production.
| TECHNICAL DATA | ZD-J10 | ZD-J13 |
| Paper Roll Width | 170~780mm | 170~900mm |
| Max. Paper Roll Diameter | Ф1000mm | Ф1000mm |
| Paper Core Diameter | Ф76mm(3") | Ф76mm(3") |
| Paper Thickness | 35-80g/㎡ | 35-80g/㎡ |
| Bag Body Length | 100~450mm | 120~710mm |
| Bag Body Width | 80~250mm | 80~320mm |
| Gusset Size | 0~130mm | 0~130mm |
| Film Width | 50~200mm | 50~200mm |
| Film Thickness | 12~50um | 12~50um |
| Film Core Diameter | Ф76mm(3") | Ф76mm(3") |
| Max. Speed | 320bags/min | 500bags/min |
| Total Power | 21kw | 21kw |
| Total Weight | Approx.4500kg | Approx.6500kg |
| Overall Dimension | 7000X1800X1900mm | 7600X2200X2100mm |
