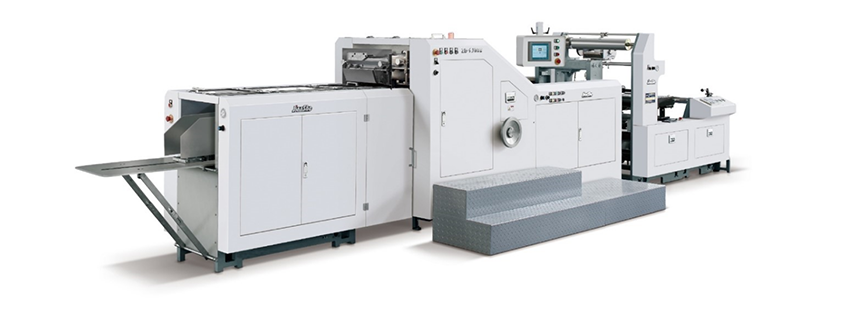

ZD-FJ Roll-fed Square Bottom Paper Bag Machine

Machine Description Machine Highlights Technical Parameters

Machine Description

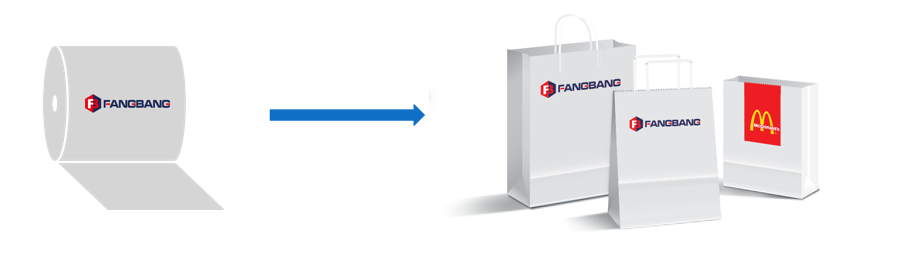

This machine is designed to manufacture square bottom paper bags without handles from paper roll, and it is an ideal equipment for producing producing various sized paper bags fast.By implementing steps including paper feeding, tube forming,tube cutting and bottom forming inline, this machine can effectively save labor costs. The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision.The equipped SIEMENS PLC system ensures that the machine can perform quickly and stably.This machine can process very thin paper,as well as produce paper bags very fast,thus this machine is especially suitable for being applied in food industries.

Machine Highlights

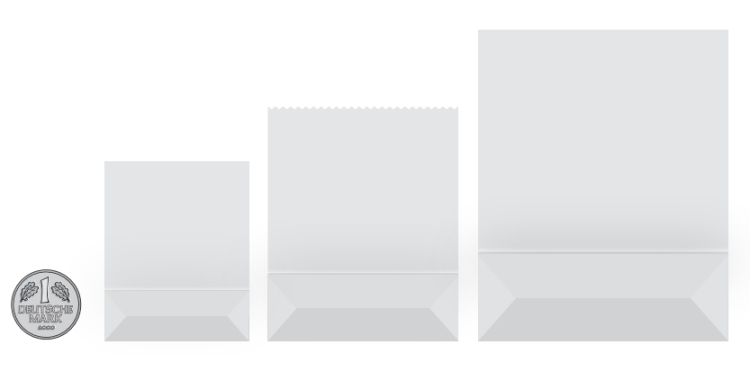

Can produce small, medium and large size paper bags
Can produce different bag bottoms: diamond bottom, single (double) open square bottom, plus thumbtacks

Technical Parameters

TECHNICAL DATA	ZD-FJ05	ZD-FJ08	ZD-FJ11E	ZD-FJ13E[S]	ZD-FJ14[S]	ZD-FJ18P[C]	ZD-FJ21S[M]
Paper Roll Width	200-450mm	290-630mm	370-890mm	400~990mm[420-1050mm]	590~1150mm	590~1390mm[650-1280mm	630~1530mm[690~1710mm]
Max.Paper Roll Diameter	Ф1000mm	Ф1200mm	Ф1500mm	Ф1500mm	Ф11500mm	中1500mm	中1500mm
Material Core Diameter	Ф76mm(3")	Ф76mm(3")	Ф76mm(3")	Ф76mm(3")	Ф176mm(3")	中76mm(3")	中76mm(3")
Paper Thickness	45~100g/㎡	45~130g/㎡	50~150g/㎡	55~160g/㎡	80~150g/㎡	70~160g/㎡	80~170g/㎡
Tube Length	130~350mm	190-370mm	270-530mm	270~530mm	340-650mm	280~620mm[380-760mm	380-770mm

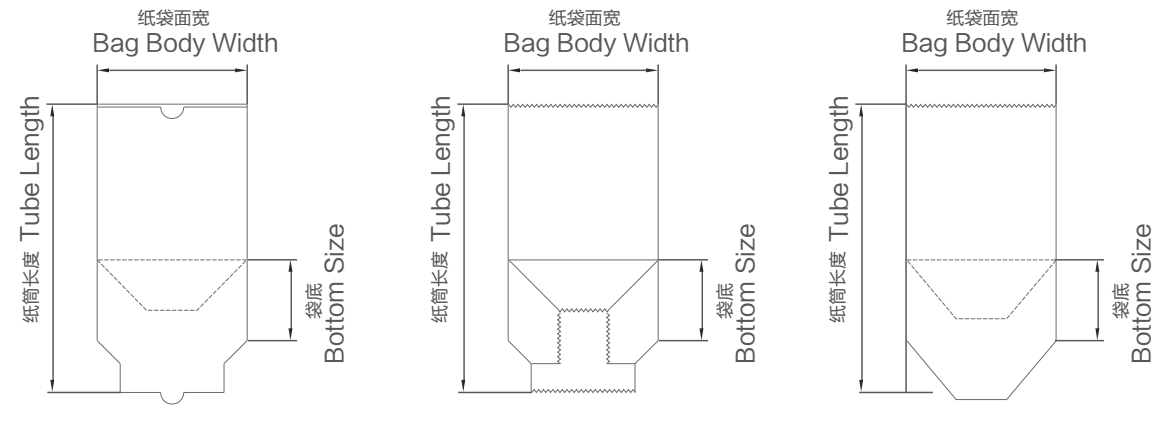

Bag Body Width	55~125mm	80~200mm	110~280mm	125~330mm	200-360mm	200-460mm[220~450mm]	220~540mm
Bag Bottom Size	30-80mm	50~100mm	60~150mm	60~150mm[70~180mm]	80~200mm[100-230mm]	80~220mm[90-180mm]	80~254mm[110-300mm]
Max. Speed	200bags/min	260bags/min	240bags/min	220bags/min	150bags/min	180bags/min	120bags/min
Total Power	12kw	13.5kw	16kw	16kw[19kw]	18.5kw	18.5kw	18.5kw[23.5kw
Total Weight	Approx.5500kg	Approx.6000kg	Approx.8000kg	Approx.8500kg	Approx.11000kg	Approx.11000kg	Approx.14000kg
Overall Dimension	L8000xW3000xH1600mm	L8500xW3000xH1600mm	L10000xW3300xH2000mm	L10000xW3450xH2000mm	L10500xW3500xH2000mm	L12000xW3500xH2000mm	L11600xW3500xH2000mm
