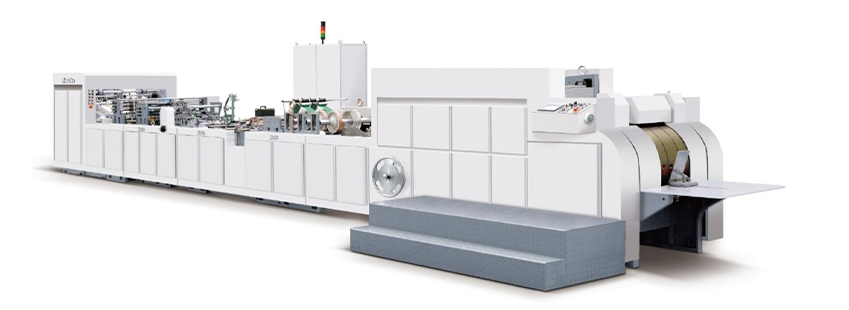

ZD-FP Sheet-fed Square Bottom Paper Bag Machine

Machine Description

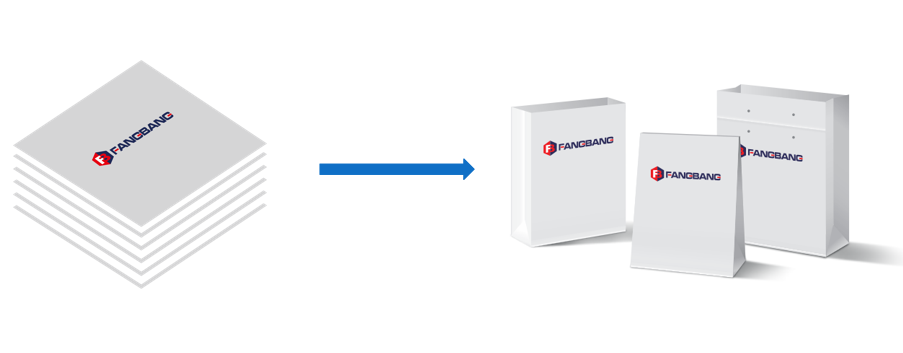

This machine is ideal for processing medium and high-grade handbag by using single sheet of paper as raw material and completing square bottom paper bag without handle at one time. By completing the steps of raw paper conveying, tube forming and pressing, edge glue application, paper brief forming and bag bottom forming in one machine, this machine can effectively reduce labour cost while ensuring good quality of handbag forming. Equipped with advanced pre-stacking flyer, the machine is capable of non-stop feeding, thus increasing the machine capacity. The perfect water glue and hot melt glue loading device allows the machine to handle a wide range of paper, which can fully meet the needs of different industries such as food, clothing and luxury shopping bags production.

Machine Highlights

1 machine can produce 2 types of bag opening.

1 machine for a wide range of papers: kraft, double-glue, coated and white cardboard (with lamination), etc.



Technical Parameters
TECHNICAL DATA ZD-FP08 ZD-FP14 ZD-FP18 ZD-FP20
Paper Width 400-780mm 550~1050mm 630~1250mm 710~1320mm
Paper Length 310~530mm 340-630mm 340~630mm 360-630mm
Paper Thickness 100~160g/m 100~250g/m 100~250g/m 100~250g/m
Bag Body Width 120~250mm 180~350mm 220~450mm 240~500mm
Bag Body Height 215-395mm 200-480mm 200~480mm 200~480mm
Bag Bottom Size 60~130mm 80~180mm 80~180mm 100~180mm
Max. Speed 80bags/min 80bags/min 80bags/min 80bags/min
Total Power 12kw 13kw 15kw 15kw
Total Weight Approx.10000kg Approx.11000kg Approx.12000kg Approx.14000kg
Overall Dimension L13500xW2400xH1600mm L13000xW2400xH1700mm L13000xW2500xH1700mm L13500xW2500xH1700mm
