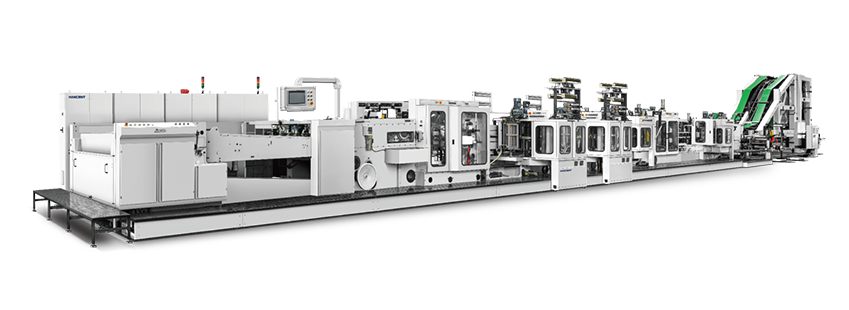

HD-2625 Paper Sack Bottomer

Machine Description

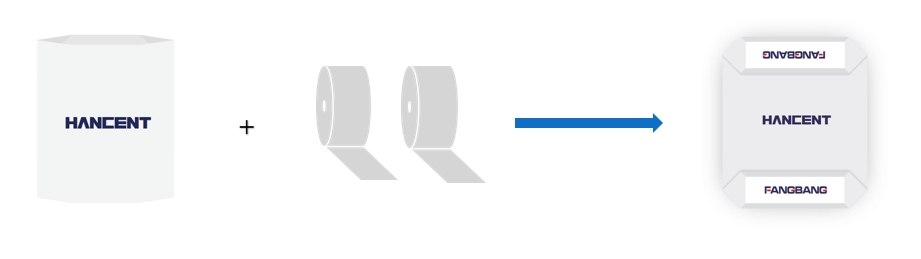

This machine is mainly used to produce various sized paper sacks by taking paper or paper+film tubes as raw materials, which can be used together with Valve Sack Tuber, By implementing steps including feeding, bottom opening, inside valve pasting outside valve pasting, inside patch pasting, bottom gluing, outside patching pasting, bottom closing, bottom pressing and sack collection within a fully automatic process, this machine can save labor costs greatly, as well as ensure the quality of finished paper sacks. This machine has a large size range, and strong elimination function. lt can be widely used to produce sacks for cement, chemical, grain and other powder and particle industries.

Technical Parameters
TECHNICAL DATA HD-2625NEW
Tube Width 350~700mm
Tube Length 470~1300mm
Bottom Width 90~250mm
Bottom Center Distance 260~1200mm
Glue Supplying Mode Closed Glue Box,Automatic Glue Supplying
Valve type Common Internal Vake, Paper+Fiim Inside Valve,(thumb) Outside Vakve and Uitrasonic Valve
Valve Paper Thickness 80~120g/m
Error of Valve Misalignment ±2.5mm
Error after Bottom Folding ±1.5mm
Production Speed 80~220pcs/min
Total Power 75kw
Total Weight Approx. 65000kg
Overall Dimension L35000xW4000xH3950mm
