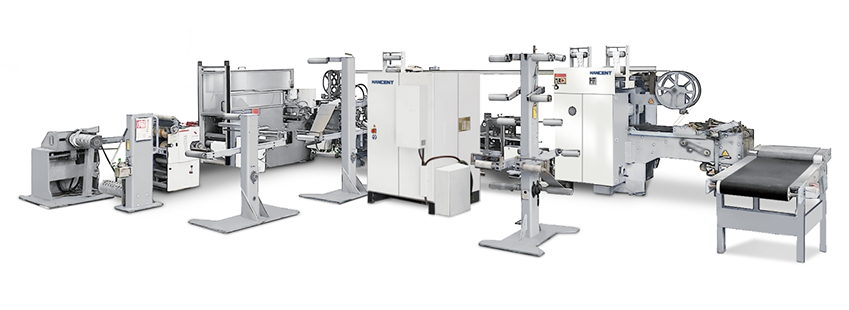

FB-S120 NEW Plastic Sack Packaging Machine

Machine Description

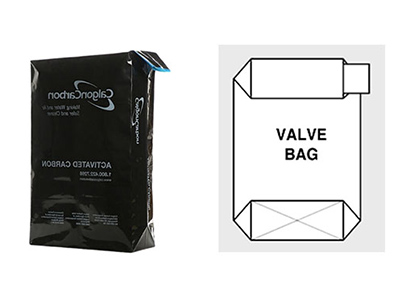

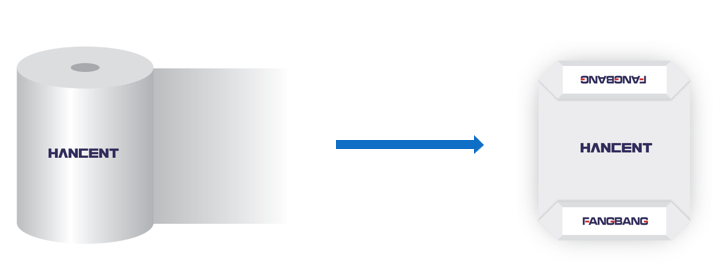

This machine produces square bottom plastic sacks with valves by taking double-sided coated polypropylene tube as raw material, which is the ideal equipment for rapid production of valve sacks. The machine has stable production speed ol1 15pcs/min,the creative negative pressure multi-step bag opening technology and vacuum bottom pasting transfer technology which make this machine be able to effectively reduce the cost of customers. Thanks to the excellent quality and fast sack-mak-ing speed, this machine is especially suitable for the mass production of packages for cement, chemical, grain and other powder and particle industries.

Technical Parameters
TECHNICAL DATA FB-S120 NEW
Sack Width 400~620mm
Sack Length 475-870mm
Bottom Size 80-120mm
Bottom Center Distance 375~750mm
Valve Sticker Width 170~260mm
Valve Sticker Length 80~200mm
Outside Patch Width 80~120mm
Outside Patch Length 300-500mm
Production Speed 120pcs/min
Total Power 150kw
Total Weight Approx. 16000kg
Overall Dimension L11000 xW7500x H2500mm
